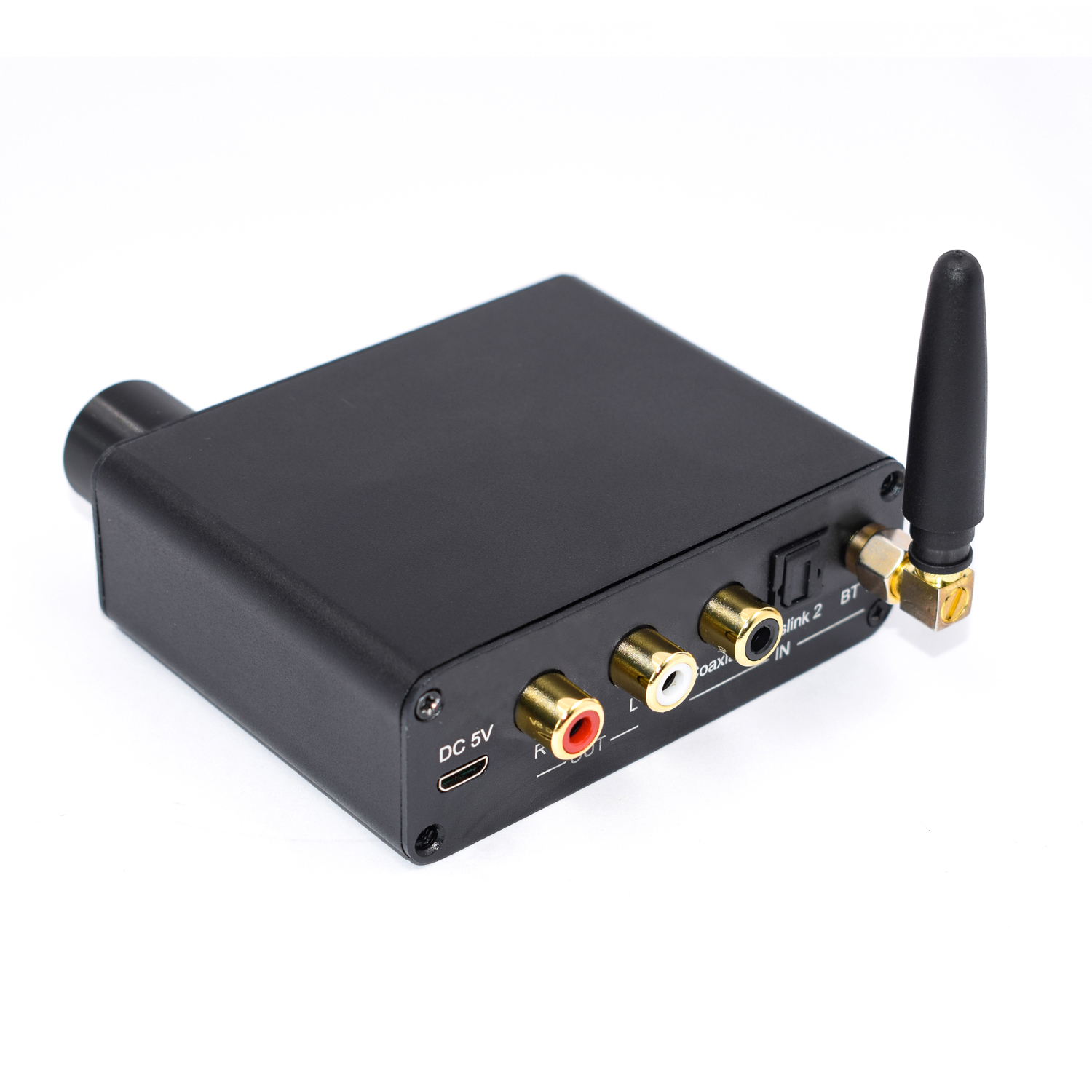

GV-BA01 DAC Headphone Amplifier with Bluetooth Receiver

DAC Headphone Amplifier with Bluetooth Receiver

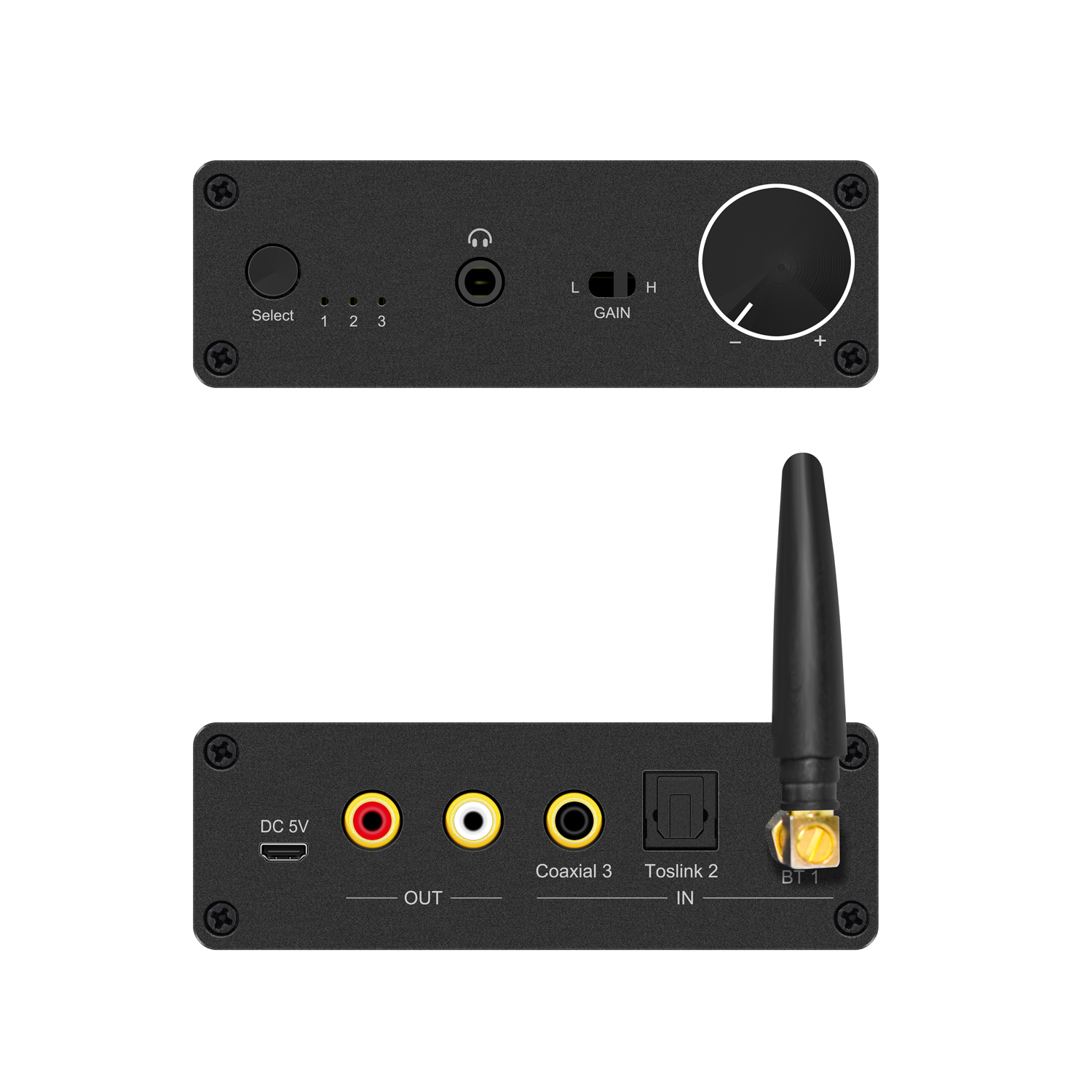

Item: GV-BA01

Input: Bluetooth * 1

Coaxial * 1

Toslink * 1

Output: 3.5mm Jack * 1

R/L Stereo Audio * 1

Introduction

This digital to analog audio converter is specially designed for either home or professional audio signal switching. It converts coaxial, Toslink digital audio or Bluetooth signals to analog L/R and 3.5mm jack audio signal.

Bluetooth status call answering instructions

The device built-in Microphone and support phone call function by Bluetooth. When contacted the Bluetooth and have a call. You also can use the selector button to control this call.

Function	What to do
Answer a call	Press select button.
End a call	Press select button.
Decline an incoming call	Press and hold for 4 seconds.

NOTE: The Bluetooth DAC S/PDIF input only supports PCM and LPCM audio signals and does not support Dolby, DTS, or other surround sound signals. Therefore, It is important that the digital audio output of your device defaults to or can be set to PCM/LPCM output. Otherwise the sound output will be noise/static.

Specification

Input:	Bluetooth, Coaxial, Toslink
Ouput	R/L stereo, 3.5mm jack headphone
Bluetooth version	V5.0
Bluetooth decoding mode	APT-X, AAC, SBC
Bluetooth protocol	A2DP V1.3.1, AVRCP V1.6 ,HFP V1.7, HSP V1.2
Bluetooth distance	>10M
Optical/Coaxial input audio format	PCM / LPCM
Optical/Coaxial input sampling rate	32, 44.1, 48, 96 and 192KHz
Headphone amplifying power	125mW x2 @ 32Ω
Suggest headphone eesistance range	16-300Ω
THD	<0.0003%
Frequency response	20Hz – 20KHZ
SN (Signal to Noise Ratio)	>120DB
Operating Temperature	0℃ to 70℃
Operating Humidity	10% to 85% RH (no condensation)
Storage Temperature	-10℃ to + 80℃
Storage Humidity	5%to 90% RH (no condensation)
Power Requirements	External Power Supply Via USB cable
Power Consumption	Max=5W
Dimensions (LWH)	85 x 100 x 28 mm
Net weight	119g
