Project Description

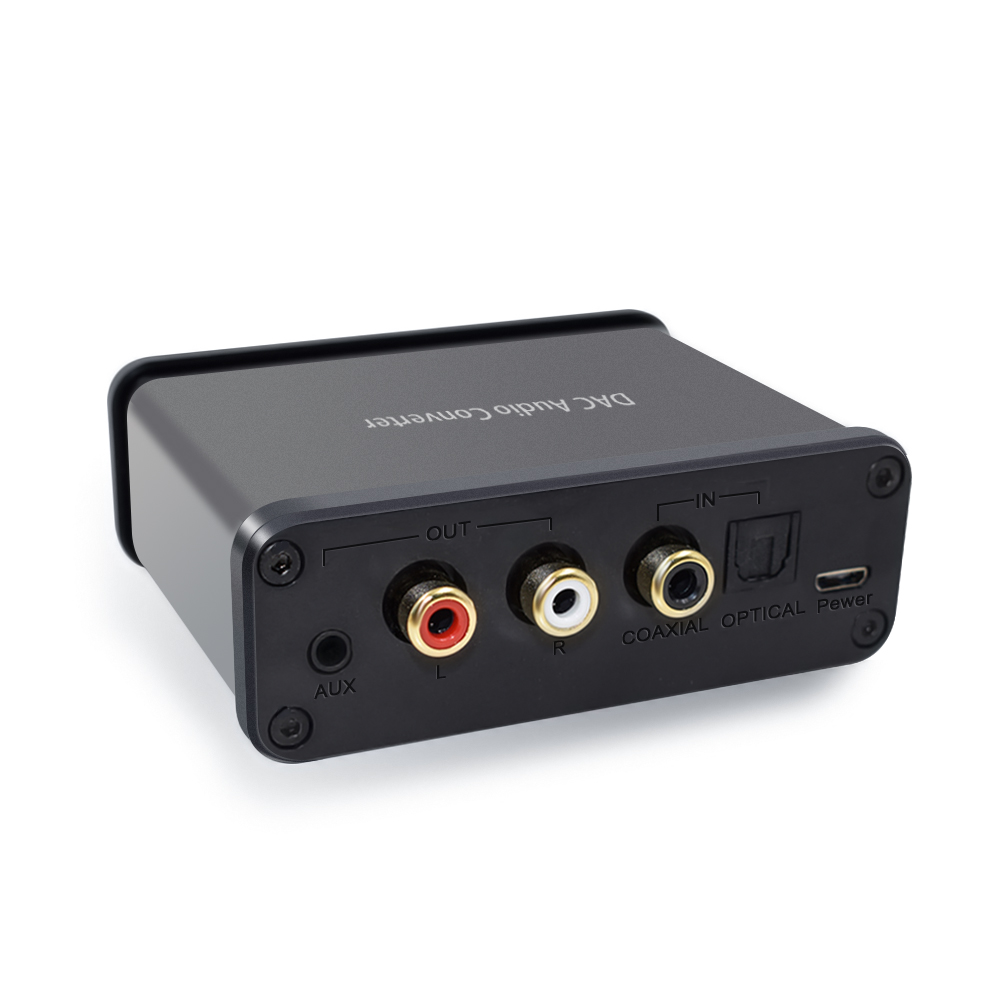

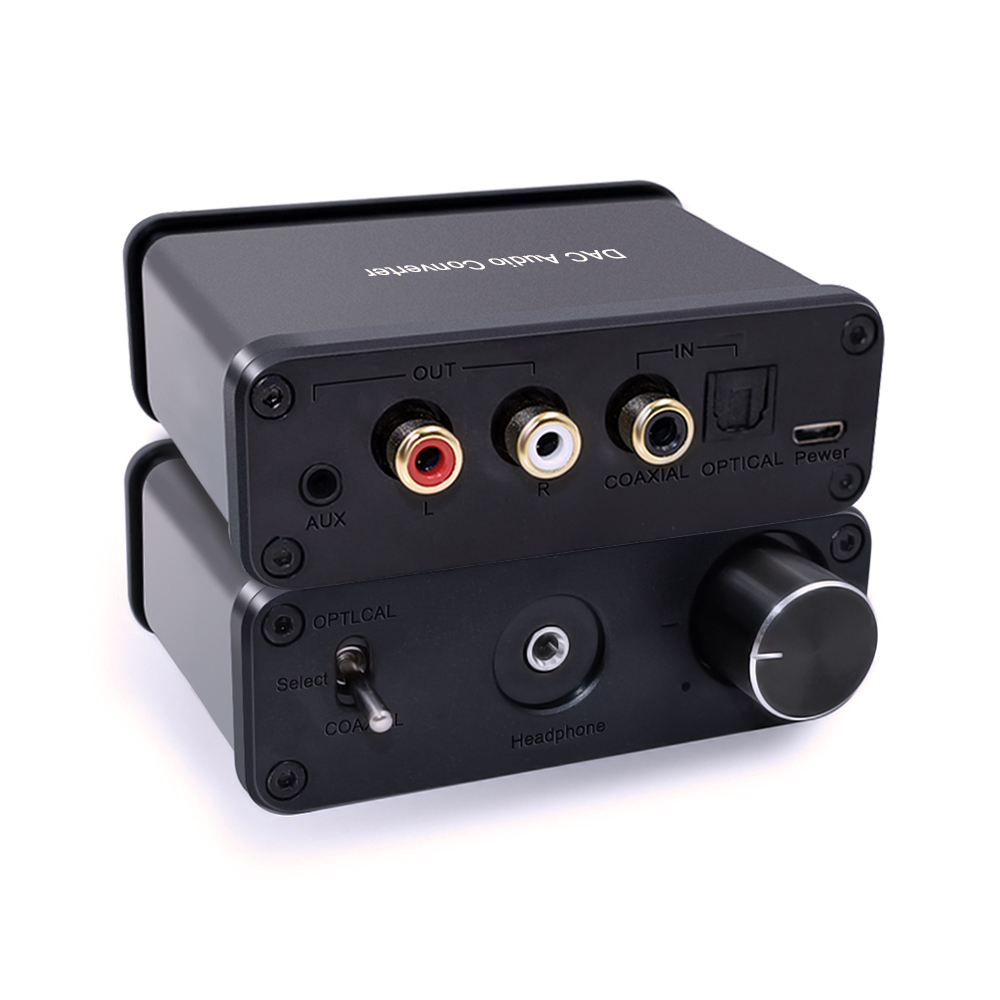

GV-010 Digital to Analog Converter with Headphone Amplifier
Item: GV-010
Input: Optical * 1
Coaxial * 1
Output: R/L * 1
3.5mm Headphone Jack * 2
The Digital to Analog Audio Converter is designed for either home or professional audio application. It converts Toslink / SPDIF or Coaxial digital audio signal to analog L/R audio; it can support an external device such as an amplifier via standard RCA-style L/R jacks, and a stereo headphone via its 3.5mm jack at the same time. This small converter is plug and play.
FEATURES
● It converts Digital Coaxial or Toslink audio signals to RCA L / R and 3.5mm stereo jack analog audio.
● It supports sampling frequency at 32, 44.1, 48, 96 and 192 KHz.
● It supports a 24-bit S / PDIF stream on the left and right channels.
● Integrated headphone amplifier 25mW x2 @ 16Ω, 22mW x2 @ 32Ω.
● Protected from electromagnetic interference.
Input / output signals | |
Audio Input | Coaxial or Toslink digital audio |
Audio Output | RCA L / R and 3.5mm stereo jack |
Audio input connector | Toslink, 1XRCA(Coaxial) |
Audio output connector | 2XRCA(R/L), 3,5mm Jack * 2 |
Sampling rate | 32, 44.1, 48, 96 and 192KHz |
Amplifying power | 25mW x2 @ 16Ω, 22mW x2 @ 32Ω |
Signal-to-noise ratio | >95dB |
THD | <0,008% |
Frequency response | 20Hz – 20KHz |
Output impedance | 50Ω |
Dynamic Range | >95dB |
Physical | |
dimensions | 84X63X28mm |
weight | 140g |
Environmental | |
Operating temperature | 0 ℃ ~ +70℃ |
Operating umidity | 10% ~ 85 % (no condensation) |
Power | |
Power | USB 5Vcc @ 0,5A (1A consigliati) |
Consumption (max.) | 5 W |
