Project Description
SPDIF/TOSLINK Digital Optical Audio 2×1 Switcher with IR Remote
Item: GV-A003

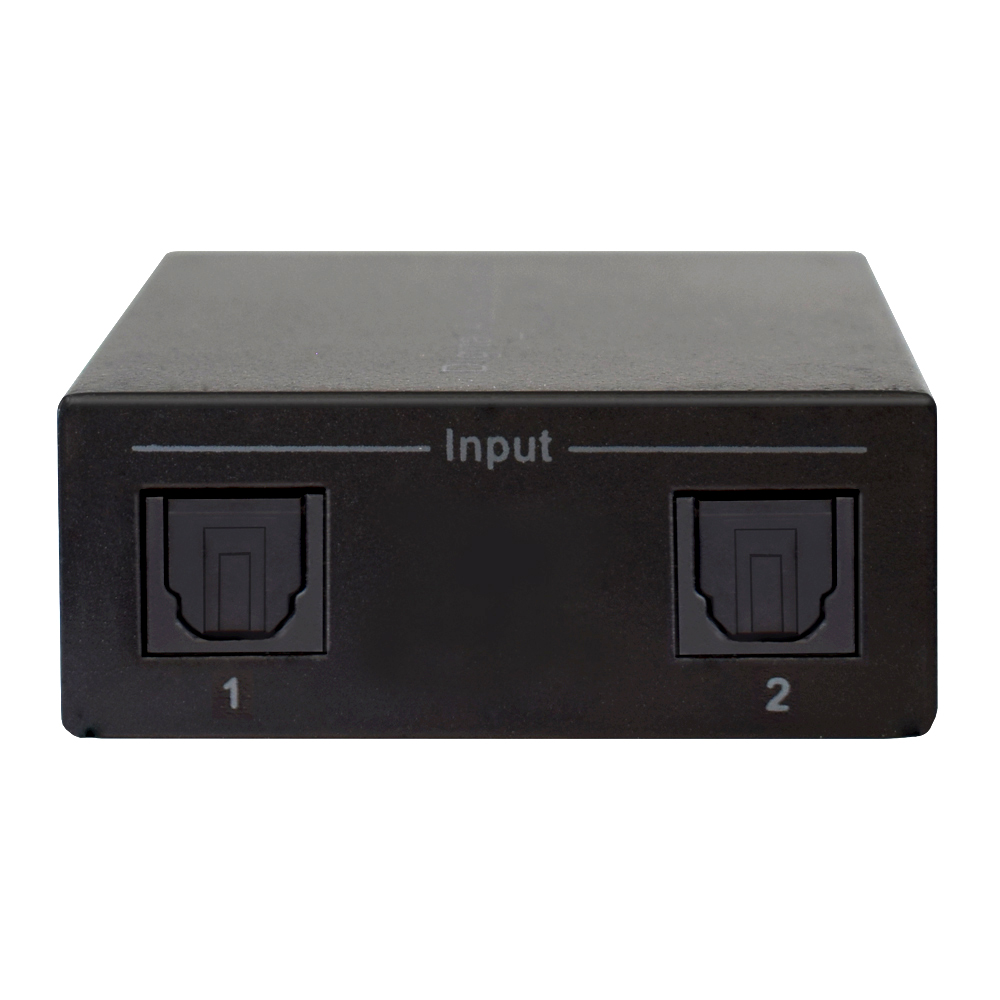

Input: Toslink * 2
Output: Toslink * 1

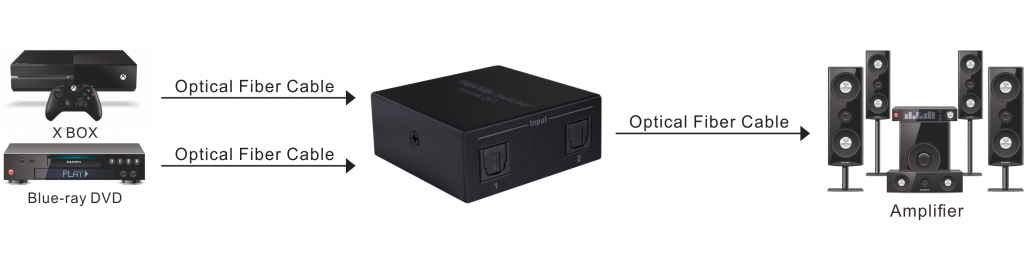

This SPDIF/TOLINK Digital Optical Audio Switchers can let the users to connect two digital optical TOSLINK sources to one optical TOSLINK (SPDIF) input on your AV amplifier.
FEATURES
- Two ways of optical fiber signals switch to one sets of SPDIF/TOSLINK signal receiving device
- Support signal retiming
- Audio format support: LPCM2.0/DTS/Dolby-AC3
- Use optical fiber cable that losses less than 0.2dB/m, Output distance is up to 40m
- The input control can through R/C and also can directly by switch button.
- Support last time working state memory when power off
- Over-voltage protection can prevent the damage caused by connecting unmatched to the machine
- No loss of quality
- Installs in minutes
| Support audio format | LPCM2.0/DTS/Dolby-AC3 |
| Peak wavelength | 650nm |
| Max baud rate | 16Mbps |
| Output cable distance | ≤40m(Use the optical fiber cable that losses less than 0.2dB/m) |
| Power Supply | USB Power Cable |
| Operating Temperature range | (0 to 40℃) |
| Operating Humidity range | 5 to 90％RH(No condensation) |
